| Pixel pitch:? | 3.91 |
| Brightness:? | 800 |
| Hz:? | 1920 |
| Cabinet material:? | Die-casting aluminum |
| Producing country: | Китай |
| Warranty period: | from 24 months |

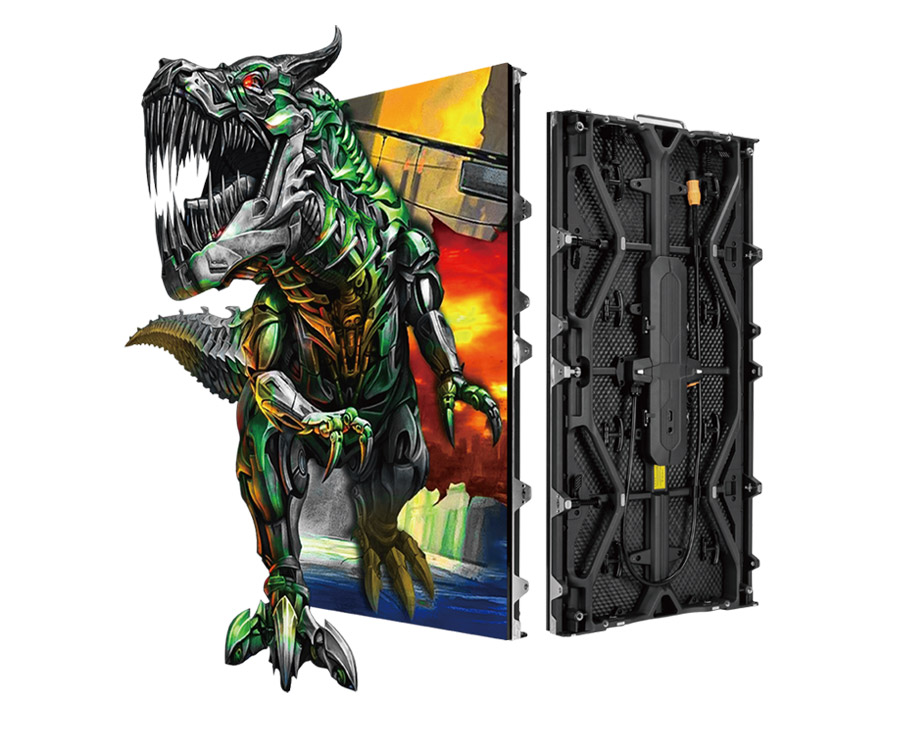

"Indoor LED display DP-391" produced by "Dicolor"
DP-391 3.91 mm pixel pitch, recommended viewing distance - from 3 meters. Brightness - 800 candels, which allows only indoor usage of this LED screen. Cabinet weight 10.00 / 7.00 kg. Installation type - rental. Rental screens come with a quick lock construction for fast installation and dismantlling.
| DP-261 | DP-291 | DP-391 | Current model DP-391 | DP-390 | DP-480 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Pixel pitch? | 2.6 | 2.97 | 3.91 | 3.91 | 3.91 | 4.81 | ||||
| Brightness? | 800 | 800 | 800 | 800 | 3500 | 3500 | ||||
| Hz? | 3840 | 3840 | 3840 | 1920 | 3840 | 3840 | ||||
| Type | outdoor-indoor | outdoor-indoor | outdoor-indoor | indoor | outdoor-indoor | outdoor-indoor | ||||
| Gray scale | 14 | 14 | 14 | 14 | 14 | 14 | ||||
| Pixel pitch front | 2.604 | 2.97 | 3.91 | 3.91 | 3.91 | 4.81 | ||||
| Pixel pitch back | 2.604 | 2.97 | 3.91 | 3.91 | 3.91 | 4.81 | ||||
| Cabinet width | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Cabinet height | 500 | 500 | 1000 | 500 | 1000 | 500 | 1000 | 500 | 1000 | 500 |
| Cabinet thickness | 65 | 65 | 65 | 65 | 65 | 65 | 67 | 67 | 67 | 67 |
| Cabinet weight | 6.5 | 6.5 | 6.5 | 10 | 10 | 7 | 7 | 11.5 | 7.5 | 12.5 |
| Average power | 40 | 40 | 79 | 39 | 77 | 40 | 84 | 42 | 94 | 47 |
| Maximum power | 120 | 120 | 236 | 118 | 230 | 115 | 250 | 125 | 280 | 140 |
| Cabinet service | Front/Back | Front/Back | Front/Back | Front/Back | Back | Back | Front/Back | Front/Back | Front/Back | Front/Back |
| Pixel pitch? | 3.91 | |
| Brightness? | 800 | |
| Hz? | 1920 | |
| Cabinet material? | Die-casting aluminum | |
| LEDs | SMD2020 | |
| Pixel configuration? | 1R1G1B | |
| Viewing angle horizontal? | 140 | |
| Viewing angle vertical? | 140 | |
| IP rate front? | ||
| IP rate back? | ||
| Scanning | 16 | |
| Type | indoor | |
| Module width | 500 | |
| Module height | 250 | |

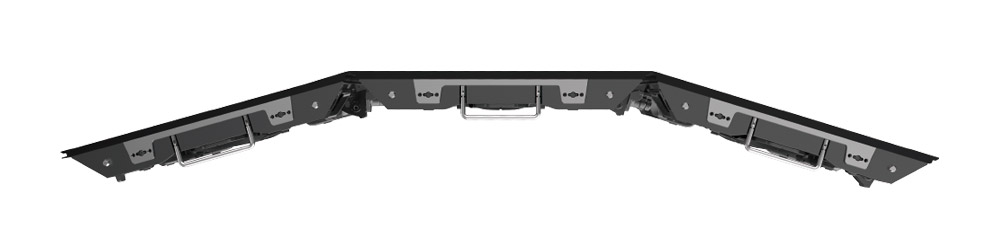

| Bending angle | 15 | |
| Gray scale | 14 | |
| Pixel pitch front | 3.91 | |
| Pixel pitch back | 3.91 | |
| Cabinet width | 500 | 500 |
| Cabinet height | 1000 | 500 |
| Cabinet thickness | 65 | 65 |
| Cabinet weight | 10 | 7 |
| Average power | 77 | 40 |
| Maximum power | 230 | 115 |
| Cabinet installation | Rental | Rental |
| Cabinet service | Back | Back |

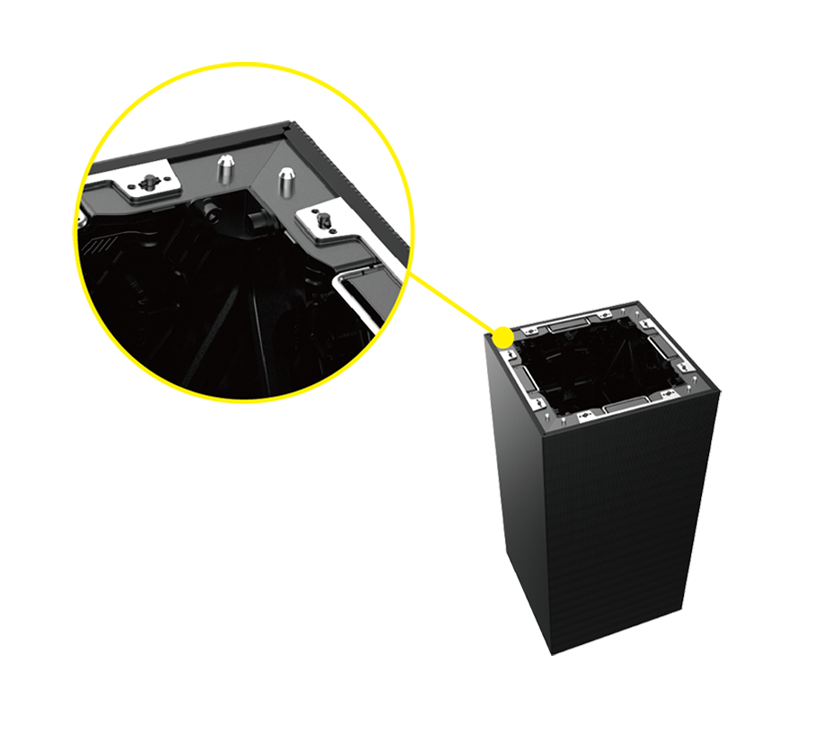

Четыре шкафа DP можно собрать в форме кубической колонны.
