| Pixel pitch:? | 5.5 |
| Brightness:? | 3000 |
| Hz:? | 3840 |
| Cabinet material:? | Aluminum |
| Producing country: | Китай |
| Warranty period: | from 24 months |
"Transparent LED display Vanish 3.91-7.81" produced by "Gloshine"
Vanish 3.91-7.81 5.5 mm pixel pitch, recommended viewing distance - from 4 meters. Brightness - 3000 candels. Cabinet weight 6.00 kg. Installation type - rental. Rental screens come with a quick lock construction for fast installation and dismantlling.
| Vanish3.91-7.81 | Current model Vanish 3.91-7.81 | Vanish8.93-8.93 | |
|---|---|---|---|
| Pixel pitch? | 3.91 | 5.5 | 8.93 |
| Brightness? | 3000 | 3000 | 3000 |
| Hz? | 3840 | 3840 | 3840 |
| Cabinet material? | Die-casting aluminum | Aluminum | Die-casting aluminum |
| LEDs | SMD1921 | SMD1921 | SMD1921 |
| Viewing angle horizontal? | 160 | 140 | 160 |
| Viewing angle vertical? | 140 | 140 | 140 |
| Type | outdoor-indoor | outdoor-indoor | outdoor-indoor |
| Gray scale | 16 | 14 | 16 |
| Pixel pitch front | 3.91 | 3.91 | 8.93 |
| Pixel pitch back | 3.91 | 7.81 | 8.93 |
| Cabinet width | 1000 | 1000 | 1000 |
| Cabinet height | 500 | 500 | 500 |
| Cabinet thickness | 89 | 75 | 89 |

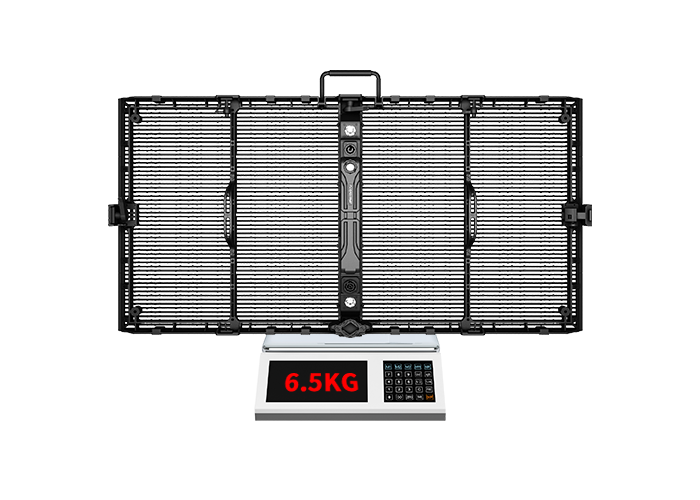

| Cabinet weight | 6.5 | 6 | 6.5 |
| Average power | 60 | 110 | 60 |
| Maximum power | 180 | 400 | 180 |
| Cabinet service | Front/Back | Back | Front/Back |
| Pixel pitch? | 5.5 |
| Brightness? | 3000 |
| Hz? | 3840 |
| Cabinet material? | Aluminum |
| LEDs | SMD1921 |
| Pixel configuration? | 1R1G1B |
| Viewing angle horizontal? | 140 |
| Viewing angle vertical? | 140 |
| IP rate front? | |
| IP rate back? | |
| Scanning | 8 |
| Type | outdoor-indoor |
| Module width | 500 |
| Module height | 125 |
| Transparency | 70 |
| Gray scale | 14 |
| Pixel pitch front | 3.91 |
| Pixel pitch back | 7.81 |
| Cabinet width | 1000 |
| Cabinet height | 500 |
| Cabinet thickness | 75 |
| Cabinet weight | 6 |
| Average power | 110 |
| Maximum power | 400 |
| Cabinet installation | Rental/FIX |
| Cabinet service | Back |
