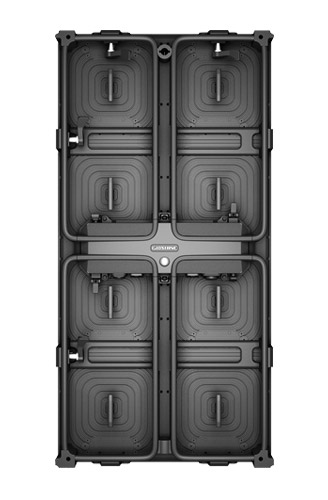

The appearance of the cabinet is variable, and may differ from that presented on the site.

Indoor LED display Gloshine AMⅡ4.81

Pixel pitch:?	4.81
Brightness:?	5000
Hz:?	3840
Cabinet material:?	Die-casting aluminum
Producing country:	Китай
Warranty period:	from 24 months

Indoor

Order calculation

"Indoor LED display AMⅡ4.81" produced by "Gloshine"

AMⅡ4.81 4.81 mm pixel pitch, recommended viewing distance - from 4 meters. Brightness - 5000 candels, which makes this LED screen best for daytime. Cabinet weight 9.00 kg.

	AM3.91	AMⅡ3.91	Current model AMⅡ4.81	AM-481	AM-595
Pixel pitch?	3.91	3.91	4.81	4.81	5.95
Brightness?	5000	5000	5000	5000	4500
Hz?	1920	3840	3840	3800	3840
Cabinet material?	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum
LEDs	SMD1921	SMD1921	SMD1921	SMD1921(High frame)	SMD2727
Pixel configuration?	1R1G1B			1R1G1B	1R1G1B
Viewing angle horizontal?	140	140	140	140	140
Viewing angle vertical?	120	120	120	120	120
IP rate front?	65			65	65
IP rate back?	65			65	65
Scanning	16			13	7
Type	outdoor-indoor	outdoor	outdoor	outdoor	outdoor
Module width	250			500	500
Module height	500			250	250

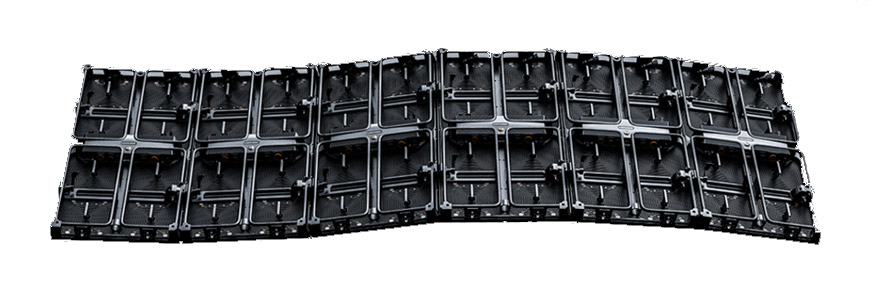

Bending angle	20			20	20
Gray scale	16	16	16	16	16
Pixel pitch front	3.91	3.91	4.81	4.81	5.95
Pixel pitch back	3.91	3.91	4.81	4.81	5.95
Cabinet width	500	500	500	500	500
Cabinet height	500	500	500	500	500
Cabinet thickness	87	80	80	85	85
Cabinet weight	9	9	9	7.5	8.8
Average power	88	88	88	79	70
Maximum power	175	175	175	157	160
Cabinet installation	Rental			Rental	Rental
Cabinet service	Back	Front/Back	Front/Back	Front/Back	Front/Back

Pixel pitch?	4.81
Brightness?	5000
Hz?	3840
Cabinet material?	Die-casting aluminum
LEDs	SMD1921
Viewing angle horizontal?	140
Viewing angle vertical?	120
Type	outdoor
Gray scale	16
Pixel pitch front	4.81
Pixel pitch back	4.81
Cabinet width	500
Cabinet height	500
Cabinet thickness	80
Cabinet weight	9
Average power	88
Maximum power	175
Cabinet service	Front/Back
