| Pixel pitch:? | 5.77 |
| Brightness:? | 6000 |
| Hz:? | 3840 |
| Producing country: | Китай |
| Warranty period: | from 24 months |

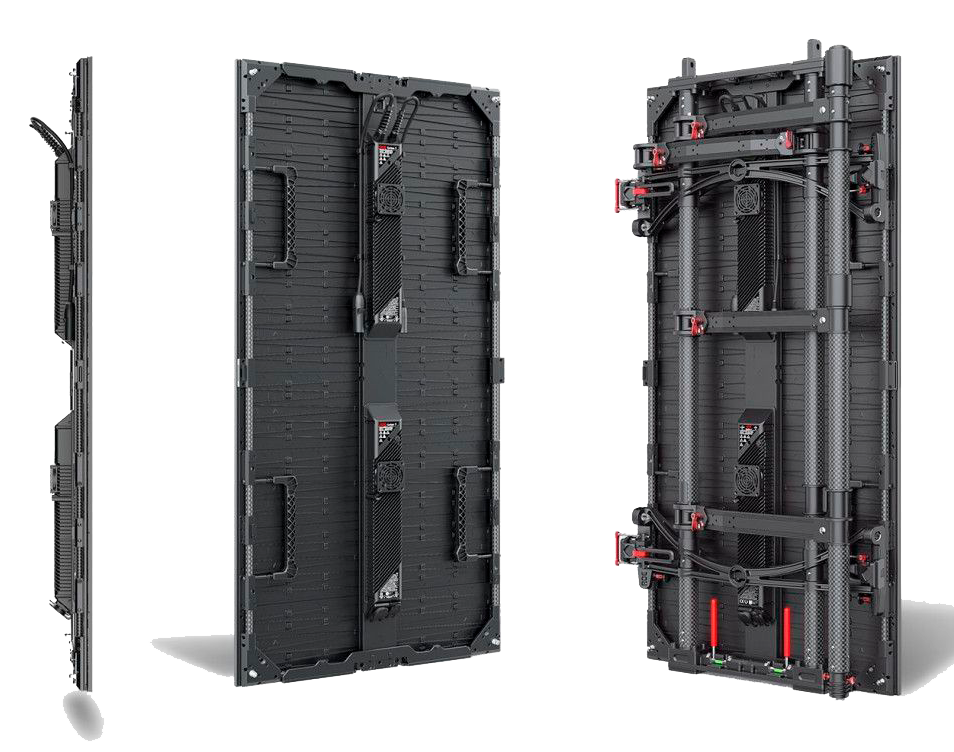

"Indoor LED display CB5" produced by "ROE Visual"
CB5 5.77 mm pixel pitch, recommended viewing distance - from 5 meters. Brightness - 6000 candels, which provides great visibility for this LED screen even in sunny weather. Cabinet weight 13.85 kg.
| CB3 | CB3 MKII | CB3 | CB5 MKII | Current model CB5 | CB5 | CB8 MKII | CB8 | |
|---|---|---|---|---|---|---|---|---|
| Pixel pitch? | 3.75 | 3.75 | 3.75 | 5.77 | 5.77 | 5.77 | 8.33 | 8.33 |
| Brightness? | 1500 | 4500 | 1500 | 6000 | 6000 | 4500 | 6000 | 5000 |
| Hz? | 3840 | 3840 | 1920 | 7680 | 3840 | 3840 | 3840 | 3840 |
| LEDs | SMD2020 black | SMD1515black | SMD2020 black | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD2727 |
| Viewing angle horizontal? | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Viewing angle vertical? | 140 | 110 | 140 | 110 | 110 | 110 | 110 | 110 |
| Type | indoor | outdoor | indoor | outdoor | outdoor | outdoor | outdoor | outdoor |
| Gray scale | 14 | 16 | 16 | 14 | 16 | 16 | 14 | 16 |
| Pixel pitch front | 3.75 | 3.75 | 3.75 | 5.77 | 5.77 | 5.77 | 8.33 | 8.33 |
| Pixel pitch back | 3.75 | 3.75 | 3.75 | 5.77 | 5.77 | 5.77 | 8.33 | 8.33 |

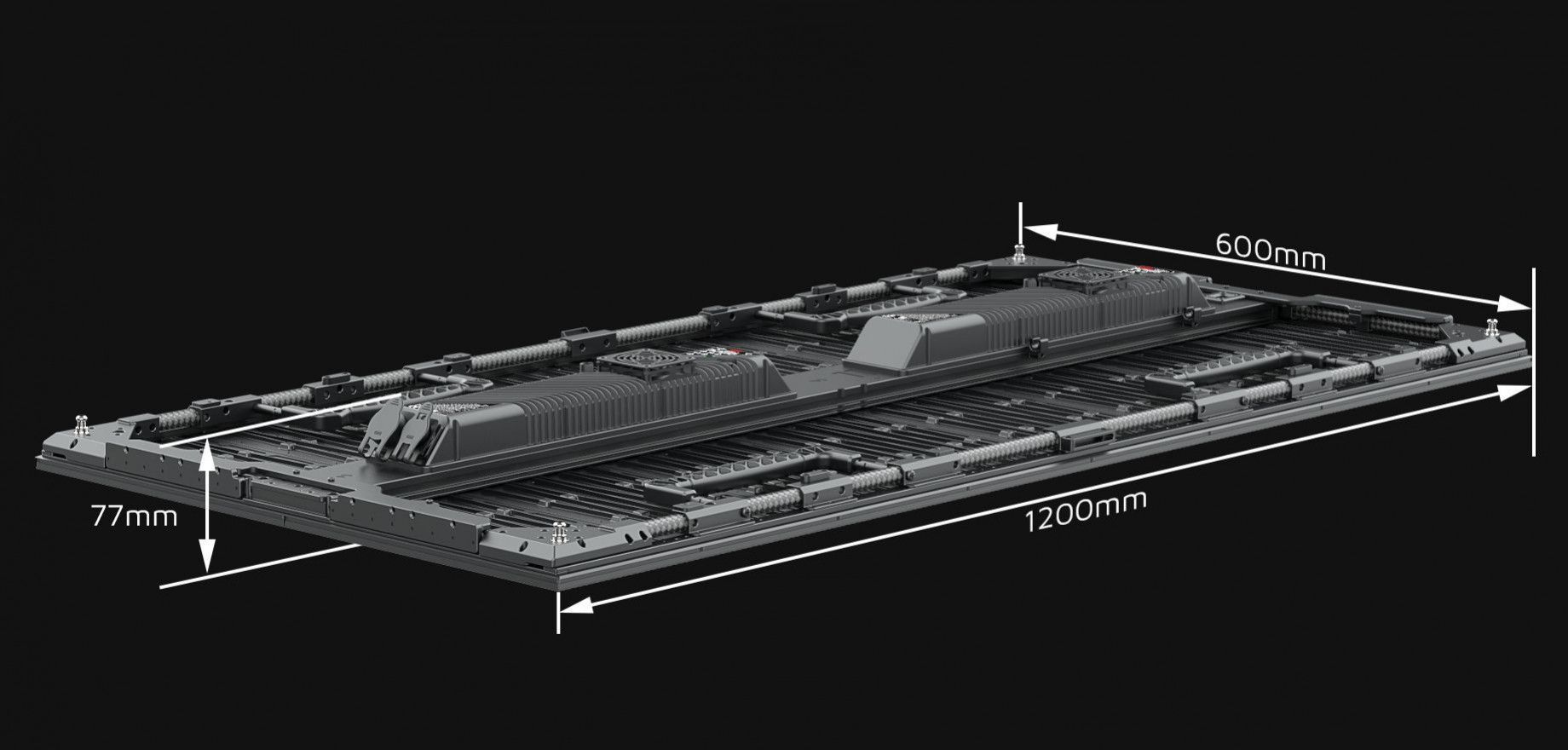

| Cabinet width | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Cabinet height | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Cabinet thickness | 77 | 79 | 77 | 79 | 77 | 77 | 79 | 72 |
| Cabinet weight | 13.2 | 14 | 13.2 | 12.2 | 13.85 | 13.85 | 11 | 12.68 |
| Average power | 270 | 300 | 270 | 240 | 250 | 330 | 300 | 220 |
| Maximum power | 540 | 600 | 540 | 480 | 500 | 650 | 600 | 430 |
| Cabinet service | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back |
| Pixel pitch? | 5.77 |
| Brightness? | 6000 |
| Hz? | 3840 |
| LEDs | SMD1921 |
| Viewing angle horizontal? | 140 |
| Viewing angle vertical? | 110 |
| Type | outdoor |
| Gray scale | 16 |
| Pixel pitch front | 5.77 |
| Pixel pitch back | 5.77 |
| Cabinet width | 600 |
| Cabinet height | 1200 |
| Cabinet thickness | 77 |
| Cabinet weight | 13.85 |
| Average power | 250 |
| Maximum power | 500 |
| Cabinet service | Front/Back |
Превосходная яркость, высокое качество черного или белого светодиода и малый собственный вес делают светодиодные панели серии Carbon идеальным решением для туристических, спортивных и иных мероприятий, где необходимо быстро построить большие видеостены.
