Worldwide dealer
of LED screens
of LED screens
| Pixel pitch:? | 4 |
| Brightness:? | 2500 |
| Hz:? | 1920 |
| Cabinet material:? | Die-casting aluminum |
| Producing country: | Китай |
| Warranty period: | from 24 months |

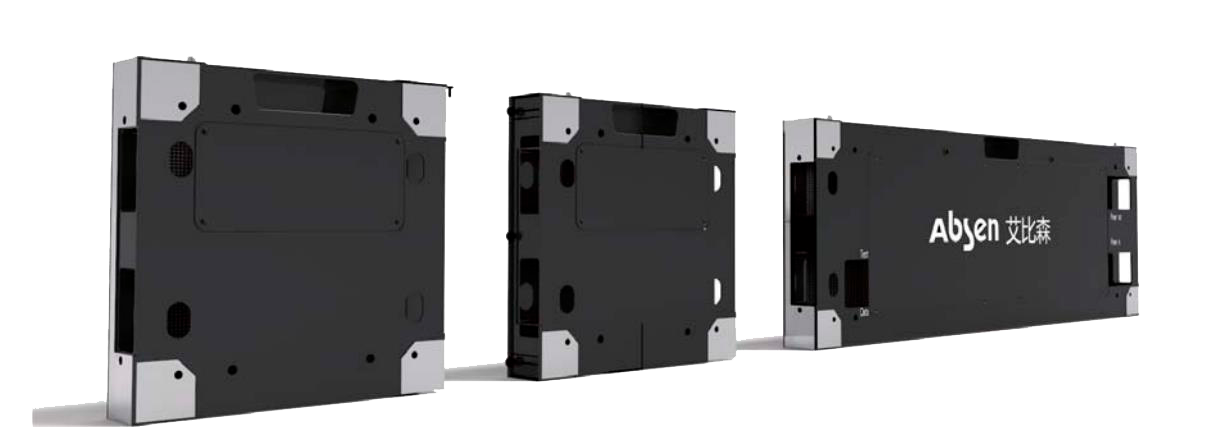

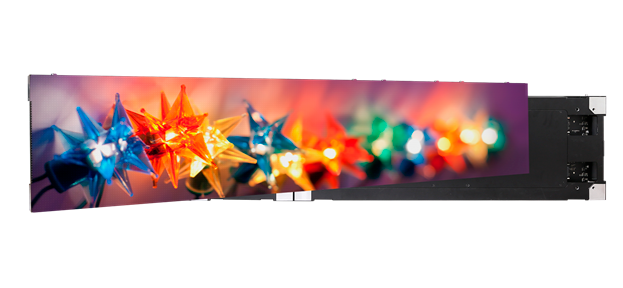

"Indoor LED display N4D Plus" produced by "Absen"
N4D Plus 4 mm pixel pitch, recommended viewing distance - from 3 meters. Brightness - 2500 candels. Cabinet weight 6.00 / 8.00 / 10.00 kg.
| N1.8 Plus | N2 Plus | N3 Plus | Current model N4D Plus | N4 Plus | N5 Plus | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pixel pitch? | 1.89 | 2.4 | 3.2 | 4 | 4 | 5.14 | ||||||||||
| Brightness? | 800 | 800 | 800 | 2500 | 800 | 800 | ||||||||||
| Hz? | 1920 | 3840 | 3840 | 1920 | 3840 | 3840 | ||||||||||
| Cabinet material? | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | ||||||||||
| LEDs | SMD1515 | SMD1515 | SMD2121 | SMD1921 | SMD2121 | SMD2121 | ||||||||||
| Viewing angle horizontal? | 140 | 140 | 160 | 160 | 160 | 160 | ||||||||||
| Viewing angle vertical? | 120 | 120 | 140 | 140 | 140 | 140 | ||||||||||
| Type | outdoor-indoor | outdoor-indoor | outdoor-indoor | outdoor-indoor | outdoor-indoor | outdoor-indoor | ||||||||||
| Module width | 288 | 288 | 288 | 288 | 288 | 288 | ||||||||||
| Module height | 288 | 288 | 288 | 288 | 288 | 288 | ||||||||||
| Gray scale | 14 | 14 | 14 | 14 | 14 | 14 | ||||||||||
| Pixel pitch front | 1.89 | 2.4 | 3.2 | 4 | 4 | 5.14 | ||||||||||
| Pixel pitch back | 1.89 | 2.4 | 3.2 | 4 | 4 | 5.14 | ||||||||||
| Cabinet width | 864 | 1152 | 864 | 1152 | 864 | 1152 | 1440 | 864 | 1152 | 1440 | 864 | 1152 | 1440 | 864 | 1152 | 1440 |
| Cabinet height | 288 | 288 | 288 | 288 | 288 | 288 | 288 | 288 | 288 | 288 | 288 | 288 | 288 | 288 | 288 | 288 |
| Cabinet thickness | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 |
| Cabinet weight | 6 | 8 | 6 | 8 | 6 | 8 | 10 | 6 | 8 | 10 | 6 | 8 | 10 | 6 | 8 | 10 |
| Average power | 45 | 60 | 45 | 60 | 35 | 46 | 58 | 25 | 33 | 41 | 36 | 48 | 60 | 32 | 43 | 54 |
| Maximum power | 134 | 179 | 134 | 179 | 105 | 139 | 174 | 75 | 100 | 124 | 108 | 144 | 180 | 98 | 131 | 164 |
| Cabinet service | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back |
| Pixel pitch? | 4 | ||
| Brightness? | 2500 | ||
| Hz? | 1920 | ||
| Cabinet material? | Die-casting aluminum | ||
| LEDs | SMD1921 | ||
| Viewing angle horizontal? | 160 | ||
| Viewing angle vertical? | 140 | ||
| Type | outdoor-indoor | ||
| Module width | 288 | ||
| Module height | 288 | ||
| Gray scale | 14 | ||
| Pixel pitch front | 4 | ||
| Pixel pitch back | 4 | ||
| Cabinet width | 864 | 1152 | 1440 |
| Cabinet height | 288 | 288 | 288 |
| Cabinet thickness | 54 | 54 | 54 |
| Cabinet weight | 6 | 8 | 10 |
| Average power | 25 | 33 | 41 |
| Maximum power | 75 | 100 | 124 |
| Cabinet service | Front/Back | Front/Back | Front/Back |
