| Pixel pitch:? | 1.25 |
| Brightness:? | 800 |
| Hz:? | 3840 |
| Cabinet material:? | Die-casting aluminum |
| Producing country: | Китай |
| Warranty period: | from 24 months |
"Indoor LED display PL1.25" produced by "Gloshine"
PL1.25 1.25 mm pixel pitch, recommended viewing distance - from 1 meters. Brightness - 800 candels, which allows only indoor usage of this LED screen. Cabinet weight 7.60 kg.
Current model PL1.25 | PL 1.56 | PL 1.95 | PL 2.6 | PL 2.97 | PL 3.91 | |
|---|---|---|---|---|---|---|
| Pixel pitch? | 1.25 | 1.56 | 1.95 | 2.6 | 2.97 | 3.91 |
| Brightness? | 800 | 800 | 900 | 1100 | 1000 | 1000 |
| Hz? | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Cabinet material? | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| LEDs | SMD1010 | SMD1212 | SMD1010 | SMD1515 | SMD2020 | SMD2020 |
| Viewing angle horizontal? | 160 | 160 | 160 | 160 | 160 | 160 |
| Viewing angle vertical? | 140 | 140 | 140 | 140 | 140 | 140 |
| Type | indoor | indoor | indoor | indoor | indoor | indoor |
| Gray scale | 16 | 16 | 16 | 16 | 16 | 16 |
| Pixel pitch front | 1.25 | 1.56 | 1.95 | 2.6 | 2.97 | 3.91 |
| Pixel pitch back | 1.25 | 1.56 | 1.95 | 2.6 | 2.97 | 3.91 |
| Cabinet width | 500 | 500 | 500 | 500 | 500 | 500 |
| Cabinet height | 500 | 500 | 500 | 500 | 500 | 500 |
| Cabinet thickness | 73 | 73 | 73 | 73 | 73 | 73 |
| Cabinet weight | 7.6 | 7.6 | 7.6 | 7.6 | 7.6 | 7.6 |
| Average power | 81 | 81 | 81 | 82 | 81 | 81 |
| Maximum power | 163 | 163 | 163 | 163 | 163 | 163 |
| Cabinet service | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back |
| Pixel pitch? | 1.25 |
| Brightness? | 800 |
| Hz? | 3840 |
| Cabinet material? | Die-casting aluminum |
| LEDs | SMD1010 |
| Viewing angle horizontal? | 160 |
| Viewing angle vertical? | 140 |
| Type | indoor |
| Gray scale | 16 |
| Pixel pitch front | 1.25 |
| Pixel pitch back | 1.25 |
| Cabinet width | 500 |
| Cabinet height | 500 |
| Cabinet thickness | 73 |
| Cabinet weight | 7.6 |
| Average power | 81 |
| Maximum power | 163 |
| Cabinet service | Front/Back |

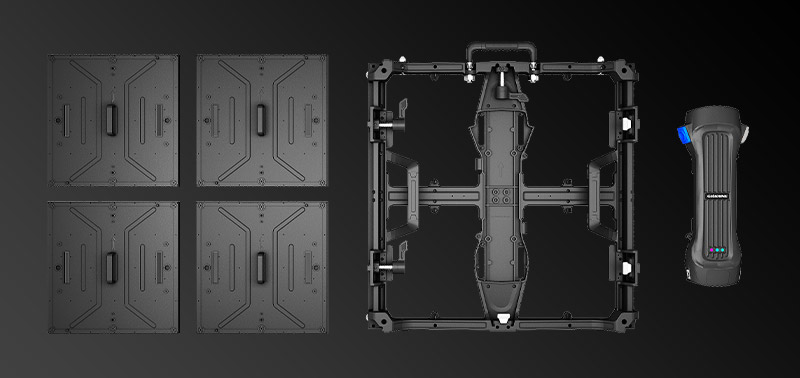

Интегрированная конструкция делает обслуживание удобнее
