| Pixel pitch:? | 3.9 |
| Brightness:? | 1000 |
| Hz:? | 3840 |
| Cabinet material:? | Die-casting aluminum |
| Producing country: | Китай |
| Warranty period: | from 24 months |

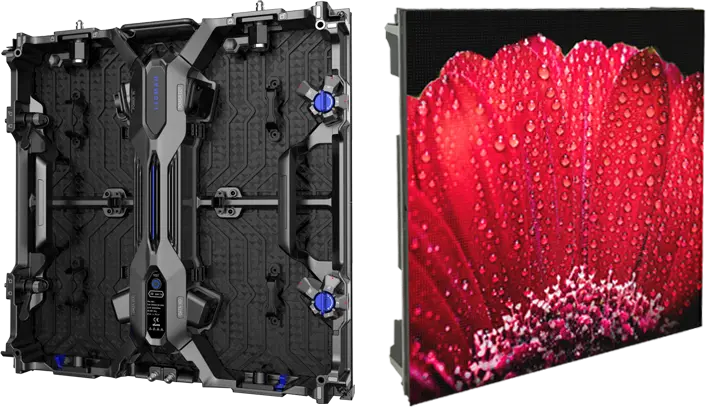

"Indoor LED display W3.9" produced by "Ledman"
W3.9 3.9 mm pixel pitch, recommended viewing distance - from 3 meters. Brightness - 1000 candels. Cabinet weight 7.50 kg.
| W1.9 | W2.3 | W2.6 | W2.9 | W2 | Current model W3.9 | W3 | W4 | |
|---|---|---|---|---|---|---|---|---|
| Pixel pitch? | 1.9 | 2.3 | 2.6 | 2.9 | 2.9 | 3.9 | 3.9 | 4.8 |
| Brightness? | 800 | 1000 | 1000 | 1000 | 4000 | 1000 | 4500 | 4500 |
| Hz? | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Cabinet material? | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Type | outdoor-indoor | outdoor-indoor | outdoor-indoor | outdoor-indoor | outdoor-indoor | outdoor-indoor | outdoor-indoor | outdoor-indoor |
| Gray scale | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Pixel pitch front | 1.9 | 2.3 | 2.6 | 2.9 | 2.9 | 3.9 | 3.9 | 4.8 |
| Pixel pitch back | 1.9 | 2.3 | 2.6 | 2.9 | 2.9 | 3.9 | 3.9 | 4.8 |
| Cabinet width | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Cabinet height | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Cabinet thickness | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Cabinet weight | 7.9 | 7.8 | 7.5 | 7.5 | 8.5 | 7.5 | 7.7 | 7.7 |
| Average power | 33 | 43 | 41 | 41 | 51 | 41 | 54 | 54 |
| Maximum power | 100 | 128 | 122 | 122 | 154 | 122 | 163 | 163 |
| Cabinet service | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back |
High refresh rate chip, 3840Hz, for different environmental requirements (W3 only).
A high-order energy-saving chip is used to update the level above 3840Hz; in addition, the W2 and W3 are equipped with various range hoods that can be used both indoors and outdoors, which reduces the purchase cost for customers.
