Worldwide dealer
of LED screens
of LED screens
| Pixel pitch:? | 2.5 |
| Brightness:? | 900 |
| Hz:? | 3840 |
| Cabinet material:? | Die-casting aluminum |
| Producing country: | Китай |
| Warranty period: | from 24 months |
"Indoor LED display AP 2.5" produced by "Gloshine"
AP 2.5 2.5 mm pixel pitch, recommended viewing distance - from 2 meters. Brightness - 900 candels, which allows only indoor usage of this LED screen. Cabinet weight 5.50 / 4.13 / 4.00 kg. Installation type - stationary, ie system does not provide for quick dismantling.
| AP 2.5 | Current model AP 2.5 | AP 2.97 | AP 2.97 | AP 3.91 | AP 3.91 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pixel pitch? | 2.5 | 2.5 | 2.97 | 2.97 | 3.91 | 3.91 | ||||||
| Brightness? | 1100 | 900 | 1100 | 1000 | 1100 | 1000 | ||||||
| Hz? | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | ||||||
| Cabinet material? | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | ||||||
| LEDs | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | ||||||
| Viewing angle horizontal? | 160 | 160 | 160 | 160 | 160 | 160 | ||||||
| Viewing angle vertical? | 140 | 160 | 140 | 160 | 140 | 160 | ||||||
| Type | indoor | indoor | indoor | indoor | indoor | indoor | ||||||
| Gray scale | 16 | 16 | 16 | 16 | 16 | 16 | ||||||
| Pixel pitch front | 2.5 | 2.5 | 2.97 | 2.97 | 3.91 | 3.91 | ||||||
| Pixel pitch back | 2.5 | 2.5 | 2.97 | 2.97 | 3.91 | 3.91 | ||||||
| Cabinet width | 1000 | 1000 | 750 | 500 | 1000 | 1000 | 750 | 500 | 1000 | 1000 | 750 | 500 |
| Cabinet height | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Cabinet thickness | 46 | 51 | 51 | 51 | 54 | 51 | 51 | 51 | 54 | 51 | 51 | 51 |
| Cabinet weight | 6 | 5.5 | 4.13 | 4 | 6 | 5.5 | 4.13 | 4 | 6 | 5.5 | 4.13 | 4 |
| Average power | 88 | 63 | 47 | 31 | 88 | 63 | 47 | 31 | 88 | 63 | 47 | 31 |
| Maximum power | 175 | 140 | 105 | 70 | 175 | 140 | 105 | 70 | 175 | 140 | 105 | 70 |
| Cabinet service | Front | Front | Front | Front | Front | Front | Front | Front | Front | Front | Front | Front |
| Pixel pitch? | 2.5 | ||
| Brightness? | 900 | ||
| Hz? | 3840 | ||
| Cabinet material? | Die-casting aluminum | ||
| LEDs | SMD2020 | ||
| Pixel configuration? | 1R1G1B | ||
| Viewing angle horizontal? | 160 | ||
| Viewing angle vertical? | 160 | ||
| IP rate front? | |||
| IP rate back? | |||
| Scanning | 25 | ||
| Type | indoor | ||
| Module width | 250 | ||
| Module height | 250 | ||
| Gray scale | 16 | ||
| Pixel pitch front | 2.5 | ||
| Pixel pitch back | 2.5 | ||
| Cabinet width | 1000 | 750 | 500 |
| Cabinet height | 250 | 250 | 250 |
| Cabinet thickness | 51 | 51 | 51 |
| Cabinet weight | 5.5 | 4.13 | 4 |
| Average power | 63 | 47 | 31 |
| Maximum power | 140 | 105 | 70 |
| Cabinet installation | Fix | Fix | Fix |
| Cabinet service | Front | Front | Front |

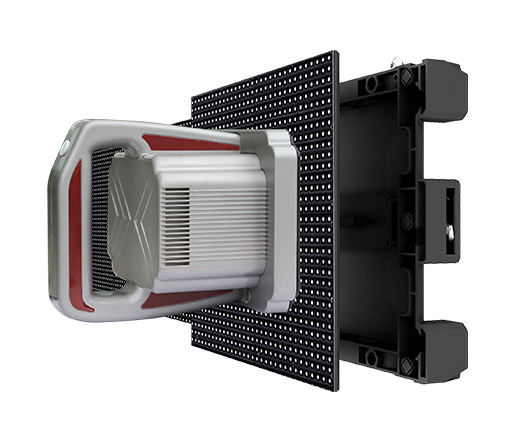

Магнитный светодиодный модуль
Замена модуля
Полное фронтальное обслуживание для замены запасных частей
